Electric Patrol Car
>
|
| Place of Origin | CN |
| Brand Name | KERID |
| Certification | ISO9001, CE |
| Model Number | X4 |
Small Four Wheel Street Legal Security Guard Electric Patrol Car Nominal 4 Passengers
Features Description
Electric Patrol Car is a specially designed and developed for a special department patrol passenger car, which is divided into ordinary patrol car and closed type, ordinary patrol car can be divided into ordinary type and luxury type . It is especially suitable for public security patrols, pedestrian streets, golf courses, tourist attractions, real estate , all kinds of large enterprises, institutions, parks, entertainment venues, stadiums, universities, hospitals, nursing homes, ports and so on.
Specification
Performance
| Passenger capacity | 4seats |
| Max.Speed | 30km/h |
| Range(loaded) | 80-100km |
| Climbing Ability(loaded) | 0.15-0.30 |
| Braking Distance | ≤4m |
| Min.Turning Radius | 4m |
| Min.Clearance | 135mm |
| Recharge time | 8~10h |
Dimensions
| L×W×H | 3300×1400×1950mm |
| F/R Tread | 1100/1100mm |
| Axle Distance | 2100mm |
| Curb Weight | 680kg |
| Max. loading | 400kg |
Standard Configuration
| Motor | 48V/4KW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life. |
| Controller | 48V/4KW Curtis controller |
| Body & Roof | High impact fiber glass, The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages |
| Batteries | Free-maintenance Batteries, 6V/225Ah*8pcs, Large capacity deep cycle power battery, good safety, long life, high service life |
| Windshield | See-through Laminated glass,The car is equipped with special glass car wiper |
| Seats | Sponge + artificial leather, high rebound PU, with handrails, riding comfort |
| Rear view mirror | 2pcs , manual exterior rearview mirror, comprehensive understanding of road conditions |
| Tire | 155/80 R12 Radial tire (Auto tire), Alloy Wheel,Vacuum Tire |
| Chassis | Welded tubular steel with rust-proof powder coated paint |
| Steering | Single reduction rack and pinion, Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light |
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber |
| Rear suspension | Leaf spring+shock absorber non-independent suspension |
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights |
| Sound system | Radio and MP3 player; Speaker |
| Brake system | 4-wheel hydraulic drum brake system + handbrake |
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ |
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button |
| Color | |

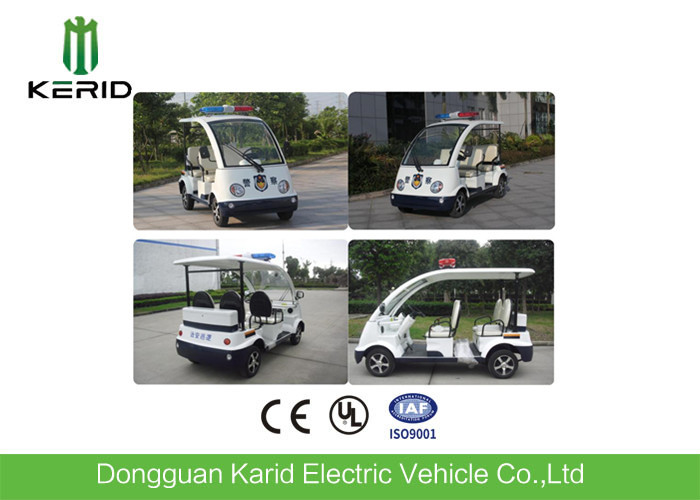

Detailed Images
Case Display
