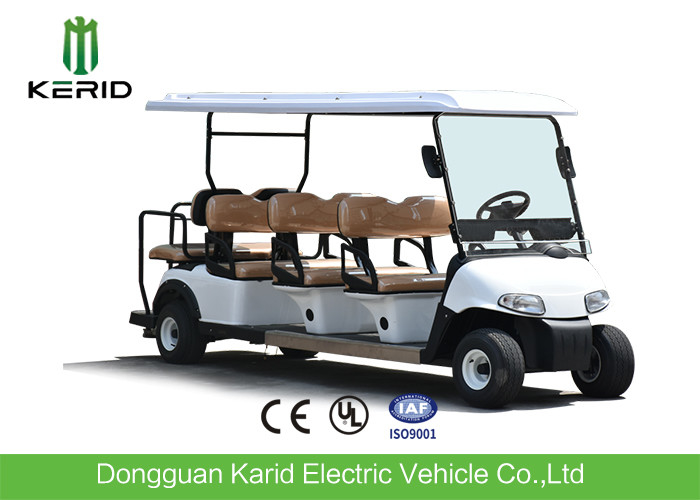

Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders

Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders
Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders

Large Image :  Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders

Product Details:
Place of Origin: CN
Brand Name: KERID
Certification: ISO9001, CE
Model Number: KRD -G6+2
Payment & Shipping Terms:
Minimum Order Quantity: 2 Units
Price: USD 4900-5500 Per Unit
Packaging Details: bulk or steel crate
Delivery Time: Within 15 working days after receiving your deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 150 Units Per Month
Detailed Product Description
Rated Passengers: 8 Persons Controller: 48V US Curtis Cotroller
Battery: 8V * 6Pcs Lead Acid Maintenance Free Max. Speed: 30km/h
Recharge Time: 6-8h Max. Loading: 600kg
Warranty: 12 Months Color: Customized
Mileage: 80-100km Drive Mode: Rear Shaft
High Light:

electric car golf cart

,

street legal golf carts



Wholesale Price 4 Wheel Electric Golf Carts Street Legal 8 Persons With Deep Cup Holders




Description

Golf using special plastic materials, body, high hardness paint layer, shiny, full, toughness, impact resistance ability. The international standard of high strength steel chassis is formed according to the principle of automobile chassis design, engineering plastic frame, the lighter body and enhances the firmness of the vehicle.

Specification




                                                                    KRD-G6+2 8 Seats Electric Golf Cart Technical Spec



Loading Capacity 600KG
L*W*H 4210mm×1210mm×1830mm
Max. Range 80-100 km
Min. Clearance 110mm
Min. Braking Distance ≤3.0M
Min. Turning Radius ≤4.0M
Max. Grade Ability 30 %
Charging Time 6-8H
Max. Speed 25-30 km/h
Electrical System Motor:the US imports KDS 48V 3.8KW high efficiency copper coil winding motor with speed sensor to accurately control the speed. Strong overload capability. High temperature resistance and low noise.
Battery: 8V/Pcs*6, large capacity, deep recycle, lead acid batteries.
Charger: computer intelligent automatic high-frequency, high-efficiency pulse type charger, input: 220V AC, 50HZ, output:48V DC 25A. Temperature compensation with battery temperature sensor for extended battery life.
Controller: US imported Curtis controller with personalized programming, CMOS stepless shifting system. The speed of the car can be adjusted according to customer requirements. The controller has its own electromagnetic brake and downhill speed limit function.
Accelerator: Hall-type contactless continuously variable transmission system
Chassis Professional frame type high strength steel plate bending welded chassis. Sandblasting, zinc spraying, baking varnish triple rust-proof treatment.
Body Cover High-strength impact-resistant composite body (PT+PBT alloy injection front cover) with super impact resistance
Rear Axle High-efficiency gear transmission, differential speed ratio 12.31:1, maintenance-free.
Brake System Mechanical drum brake
Front suspension system Multi-piece leaf spring and hydraulic shock absorber system.
Rear suspension system Multi-piece leaf spring and hydraulic shock absorber system.
Steering System Single-stage rack and pinion steering system
Seating System 8 seats PU car seat, artificial leather sofa seat, comfortable ride.
Tire Radial tire 18×8.5-8 vacuum tire
Dashboard US Curtis electricity meter, ignition switch, direction selector switch, water cup position, storage bin.
Color Make a customization as per your requirements.



Features

1. High-efficiency gear transmission, maintenance-free rear axle
2.100% Waterproof accelerator
3. Comfortable sofa back seats
4. Deep Cup Holders

Detailed Images

Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders 0
Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders 1
Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders 2


Optional Colors

Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders 3




Packing&Shipping



Wholesale Price 8 Persons Electric Golf Carts Street Legal With Deep Cup Holders 4

1. Our products packing ways as per the products feature and order quantity.

2. Nude packing fixed with steel wire for FCL, Steel crate packing/ wooden box packing for LCL.



Application



Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community, Inside factory,Shopping mall,Musuem,Campus and so on.
