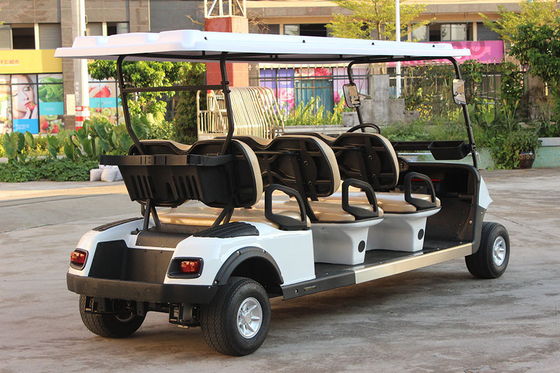

4 Wheel Custom Color 6 Passenger Golf Electric Cart Powered By Lead Acid Batteries
Widely used for tourist attractions, real estate, golf course, high-end hotels, resorts, luxury villas, commercial pedestrian streets, communities, factories, schools, airports, hospitals, government procurement, etc.
KRD-G6 6 Seats Electric Golf Cart Technical Spec
Loading Capacity | 600KG | |
L*W*H | 4200mm×1210mm×1830mm | |
Max. Range | 80-100 km | |
Min. Clearance | 110mm | |
Min. Braking Distance | ≤3.0M | |
Min. Turning Radius | ≤5.0M | |
Max. Grade Ability | 30 % | |
Charging Time | 6-8H | |
Max. Speed | 25-30 km/h | |
Electrical System | Motor:the US imports KDS 48V 3.8KW high efficiency copper coil winding motor with speed sensor to accurately control the speed. Strong overload capability. High temperature resistance and low noise. | |
Battery: 8V/Pcs*6, large capacity, deep recycle, lead acid batteries. | ||
Charger: computer intelligent automatic high-frequency, high-efficiency pulse type charger, input: 220V AC, 50HZ, output:48V DC 25A. Temperature compensation with battery temperature sensor for extended battery life. | ||
Controller: US imported Curtis controller with personalized programming, CMOS stepless shifting system. The speed of the car can be adjusted according to customer requirements. The controller has its own electromagnetic brake and downhill speed limit function. | ||
Accelerator: Hall-type contactless continuously variable transmission system | ||
Chassis | Professional frame type high strength steel plate bending welded chassis. Sandblasting, zinc spraying, baking varnish triple rust-proof treatment. | |
Body Cover | High-strength impact-resistant composite body (PT+PBT alloy injection front cover) with super impact resistance | |
Rear Axle | High-efficiency gear transmission, differential speed ratio 12.31:1, maintenance-free. | |
Brake System | Mechanical drum brake | |
Front suspension system | Multi-piece leaf spring and hydraulic shock absorber system. | |
Rear suspension system | Multi-piece leaf spring and hydraulic shock absorber system. | |
Steering System | Single-stage rack and pinion steering system | |
Seating System | 6 seats PU car seat, artificial leather sofa seat, comfortable ride. | |
Tire | Radial tire 18×8.5-8 vacuum tire | |
Dashboard | US Curtis electricity meter, ignition switch, direction selector switch, water cup position, storage bin. | |
Color | Make a customization as per your requirements. |
Detailed Images
Packing&Shipping
Customer Case
FAQ
01 . What are our advantages?
1.Hight quality. We are the leading manufacturer of electric vehicle, over 10 years experience. Quality is the first we focus on. Good quality have the bright future.
2. Design. Comparing with other factories, our appearance with a new streamlined design, high-grade paint, bright colors, beautiful and stylish.
3. Competitive and reasonable price. We will offer a good price as quantity and give our best discount.
4. Quick Response. Our team will give you the answer in 24 hours, once we receive your inquiry and questions.
02. What are the trade terms and payment terms?
1.We normally work on EXW, FOB, CFR, CIF.
2.We accept T/T term and L/C term.
-30% by T/T as down payment, 70% by T/T before shipment. -30% by T/T as down payment, 70% L/C at sight.
For other terms, please contact us to discuss.
03. What the delivery time?
Standard configuration: 20 working days. Customized configuration: 30~40 working days.
04. What color can be painted?
The car can be painted any color as client request, the color no. need customer to provide. Maximum color mix: 2 colors.
05. What is the warranty?
1 year warranty, except the easy-broken parts.
06. How about the shipment?
Mostly, the cars will transport by sea with container loading. For some neighbouring landlocked countries, it will transport by railway. For the spare parts, it will send by air, or DHL, UPS, Fedex etc.
