Product Details:
Payment & Shipping Terms:
|
| Passengers: | 5-6 Persons | Controller: | 48V |
|---|---|---|---|
| Battery: | 8v/6pcs | Max. Speed: | 25km/h |
| F/R Tread: | 900/900mm | Color: | Customized |
| High Light: | road legal golf buggy,street legal golf carts |
||

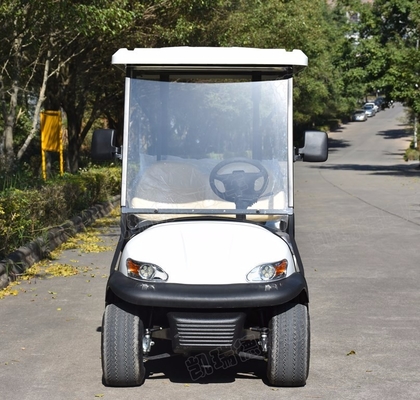

Battery Operated 48V White Color Golf Carts Electric Sightseeing 6 Seater Golf Buggy
Specification
Performance
| Passenger capacity | 6 seats |
| Max.Speed | 25km/h |
| Range(loaded) | 80km |
| Climbing Ability(loaded) | ≤0.30 |
| Braking Distance | ≤4m |
| Min.Turning Radius | 5m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
Dimensions
| L×W×H | 3700×1400×1900mm |
| F/R Tread | 900/900mm |
| Axle Distance | 3150mm |
| Curb Weight | 670kg |
| Max. loading | 600kg |
Standard Configuration
| Motor | 48V/4KW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life. |
| Controller | 48V/4KW Curtis controller, Special supporting electronic control and stepless speed change system, the controller has lower temperature, greater control current, more stable, more powerful motor, and play the highest efficiency of the motor |
| Battery | Free-maintenance Batteries8V/140Ah*6 pcs,,Large capacity deep cycle power battery, good safety, long life, high service life |
| Roof | Golf special plastic steel ceiling, waterproof, radiation protection, harmful ultraviolet ray |
| Body | High impact fiber glass,,The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages |
| Windshield | See-through Laminated glass,Special golf windscreen |
| Seats | The Three rows toward the front, imitation leather fabric + high rebound PU, with handrails, riding comfort |
| Rear view mirror | 2pcs , manual exterior rearview mirror, comprehensive understanding of road conditions |
| Painting | The whole car used car grade computer professional paint, paint, spraying equipment |
| Tire | Golf Special Alloy Wheel,Vacuum Tire |
| Chassis | Welded tubular steel with rust-proof powder coated paint |
| Steering | Single reduction rack and pinion ,Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light |
| Front Suspension | The front axle and suspension are independent suspension of the Cylinder hydraulic shock absorber,Good stability, comfortable, light direction machine, not grinding tires |
| Rear suspension | The rear axle is an integral type rear axle, durable and reliable. Leaf spring rear suspension, cylinder hydraulic shock absorber can bear more weight |
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights |
| Brake system | Golf special - foot brake - brake, simple operation, good safety, high stability |
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ |
| Dashboard | Equipped With the luxury electric door lock, electricity meter |
Features Description
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3. FR/disc RR/drum, safety golf cart’s higher driving ability
4. Advanced Disc Brake Technology
5. 100% Waterproof accelerator
6. Comfortable seats
7. Deep Cup Holders
Optional Colors
Customization Parts
Product Show
Packing&Shipping
Application
Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community, Inside factory,Shopping mall,Musuem,Campus and so on.
