Imported KDS Motor 4 Seats Battery Operated Golf Cart Electric Cargo Vehicle
| Place of Origin | CN |
|---|---|
| Brand Name | KERID |
| Certification | ISO9001, CE |
| Model Number | KRD -G4+1 |
| Minimum Order Quantity | 2 Units |
| Price | USD 4700-5300 Per unit |
| Packaging Details | bulk or steel crate |
| Delivery Time | Within 15 working days after receiving your deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 150 Units Per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Passenger Capacity | 4 People | Motor | 48V/3.0KW KDS Motor |
|---|---|---|---|
| Battery | 48V Maintenance-free Batteries | Max. Speed | 25-30km/h |
| Braking Distance | Less Than 3.0m | Range | 80-100km |
| Color | Make A Customization As Per Your Requirements | Warranty | 12 Months |
| Body Material | PT+PBT Alloy Injection | Charge Time | 6-8h |
| High Light | road legal golf buggy,electric car golf cart |
||
Product Description

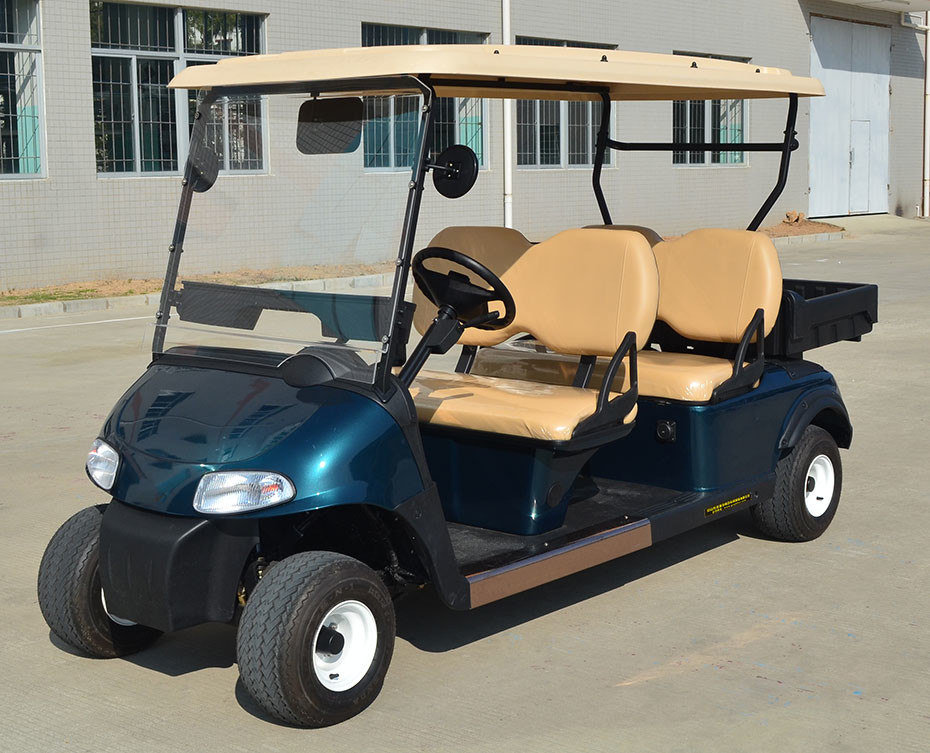

Imported KDS Motor 4 Seats Battery Operated Golf Cart Electric Cargo Vehicle With Small Cargo Box
Features Description
1. Advanced Drum Brake Technology
2. Global Special LED Headlight
3. Curtis Controller
5. Eletromagnetic Brake Makes Driving More Safty
6. 100% Waterproof accelerator
7. Comfortable seats
Application And Customer Display
Application areas: Golf Course, Resort,Hotel, Theme Park, Amusement Park, Garden, Residential Community, Inside factory, Shopping mall, Musuem, Campus and so on.
Customer display
Specification
| Loading Capacity | 500KG(including cargo) | |
| L*W*H | 3690mm×1210mm×1960mm | |
| Box Size | 700mm×1100mm×200mm | |
| Max. Range | 80-100 km | |
| Min. Clearance | 110mm | |
| Min. Braking Distance | ≤3.0M | |
| Min. Turning Radius | ≤4.0M | |
| Max. Grade Ability | 30 % | |
| Charging Time | 6-8H | |
| Max. Speed | 25－30 km/h | |
| Electrical System | Motor:the US imports KDS 48V 3.0KW high efficiency copper coil winding motor with speed sensor to accurately control the speed. Strong overload capability. High temperature resistance and low noise. | |
| Battery: 8V/Pcs*6, large capacity, deep recycle, lead acid batteries. | ||
| Charger: computer intelligent automatic high-frequency, high-efficiency pulse type charger, input: 220V AC, 50HZ, output:48V DC 25A. Temperature compensation with battery temperature sensor for extended battery life. | ||
| Controller: US imported Curtis controller with personalized programming, CMOS stepless shifting system. The speed of the car can be adjusted according to customer requirements. The controller has its own electromagnetic brake and downhill speed limit function. | ||
| Accelerator: Hall-type contactless continuously variable transmission system | ||
| Chassis | Professional frame type high strength steel plate bending welded chassis. Sandblasting, zinc spraying, baking varnish triple rust-proof treatment. | |
| Body Cover | High-strength impact-resistant composite body (PT+PBT alloy injection front cover) with super impact resistance | |
| Rear Axle | High-efficiency gear transmission, differential speed ratio 12.31:1, maintenance-free. | |
| Brake System | Mechanical drum brake | |
| Front suspension system | Multi-piece leaf spring and hydraulic shock absorber system. | |
| Rear suspension system | Multi-piece leaf spring and hydraulic shock absorber system. | |
| Steering System | Single-stage rack and pinion steering system | |
| Seating System | 4 seats PU car seat, artificial leather sofa seat, comfortable ride. | |
| Tire | Radial tire 18×8.5-8 vacuum tire | |
| Dashboard | US Curtis electricity meter, ignition switch, direction selector switch, water cup position, storage bin. | |
| Cargo box | Vacuum rotomolding container(700mm×1100mm×200mm) | |
| Color | Make a customization as per your requirements. | |
