12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route

China 12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier
12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier 12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier 12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier 12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier 12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier 12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier 12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier 12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route supplier

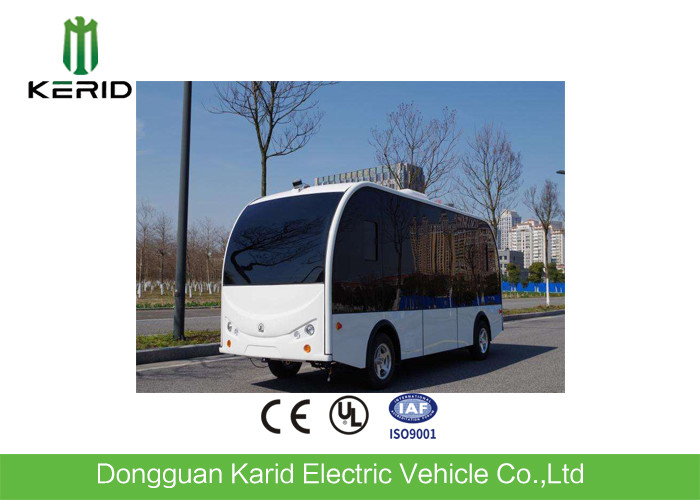

Large Image :  12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route

Product Details:

Place of Origin: CN
Brand Name: Kerid
Certification: CE/EPA/DOT
Model Number: KRD-T08

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: nuded packing
Delivery Time: Within 15 days
Supply Ability: 100UNITS PER MONTH
Contact Now
Detailed Product Description
Driving Model: Driverless Riding Route: AGV Guided Route
Controller: America Curtis Battery: 6 V 180 AH

Vehicle Advantages And Feature Autonomous driving public bus
Feature:
The vehicle uses sensors to scan its environment, including lidar (lasers) and GPS.
A map of the environment is created and on this map a network of virtual routes is defined with sensors. The vehicle positions itself using its sensors and navigates on the predefined routes network.
the bus will intermix with regular traffic, communicating with a series of wireless sensors installed into traffic signals along its journey.

12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route


Description
Automated vehicle (AV) technology is rapidly advancing and these vehicles could deliver many benefits, including improved mobility and independence for many, and reduced crash risk and severity by removing human error from the driving task.
Range 120km
Powered by solar flexible panel 350kw
Satellite mapped
12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route
Laser guided route
12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route12 Seats Autonomous Shuttle Bus , City Self Driving Bus With Satellite Mapped Route


Electrical system Electric control CURTIS
The battery 6 v180ah/only, 12/72 v
The motor 5.5 KW series motor
charger A portable intelligent transformer type charger
Charging time 8 to 10 hours (discharge at a rate of 80%)
Technical parameters Charging the input voltage 220V
Length * width * height 5000×1500×2350mm Braking distance ≤6m
Vehicle equipment quality 1450kg Rated crew 14 people
The vehicle load 1000kg Maximum speed 25km/h
Before and after the wheel track 1290/1330mm Maximum gradability 15%
The wheelbase 2700mm The minimum bending radius 6m
The minimum clearance from the ground 150mm
Body system The seat The first row of seats (single seat + high resilience PU, leather, fabrics, Angle adjustment device, with guide rail, with handrails, three-point seatbelt, light grey)
Three bench seat on the right side (+ high resilience PU, leather fabrics with armrest, light grey)
Two three people on the left side of the bench seat (+ high resilience PU, leather fabrics with armrest, light grey)
The rear bench seat three people (+ high resilience PU leather fabric, light grey)
Car body Steel frame + glass fiber reinforced plastic shell/ABS engineering plastics in the whole glass roof
instrument Combination instrument display (including voltage, current, speed, distance, lighting, commutation signals) before and after
Rear view mirror Manual type outside rearview mirror
Lighting and signal Combination headlights, turn light and combination HouWeiDeng, brake lights, electric horn and reversing buzzer, luxurious interior lights
The stereo Car MP3 players, professional speakers
switch Start switch, lighting and wiper switch, in a gear and reversing switch, warning light buzzer become warped plate switch
The door Electric folding door
The frame Steel frame structure
The steering wheel Polyurethane foam steering wheel
The chassis system Power transmission system Infinite speed control system
Steering system Machine + electric power steering gear rack type direction
The front axle and suspension Independent suspension + spiral spring, hydraulic damping cylinder
The rear axle and suspension One-piece full floating rear axle, high strength steel plate spring, hydraulic damping cylinder (12.94)
The braking system Former disc, HouGu type hydraulic brake, dual-circuits power hydraulic braking, parking brake, brake vacuum booster
tire Front wheel: 12 x 4.5 aluminum alloy wheel hub, giti tire vacuum 155 r12c meridian tire;Rear wheel: 4 j * 13 rims, giti tire vacuum meridian tyres 155 / R13C
Oil paint Auto level ordinary paint, computer tune paint, professional spraying equipment
