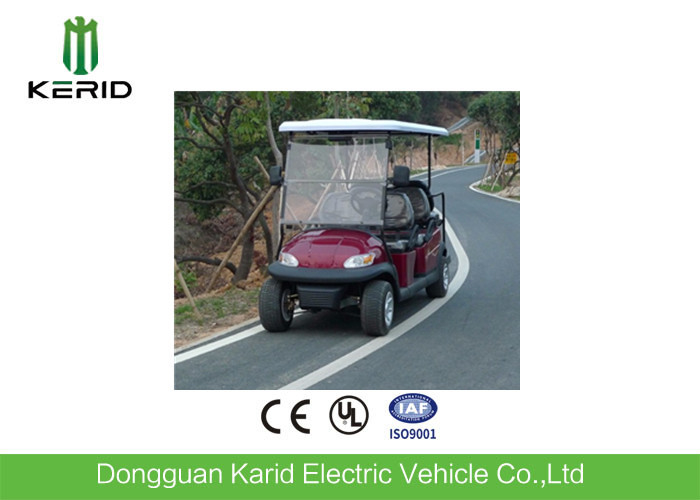

6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake

Certification
China Guangzhou Jetflix Machinery & Equipment Co,Ltd certification
China Guangzhou Jetflix Machinery & Equipment Co,Ltd certification
I'm Online Chat Now

6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake

6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake
6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake 6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake 6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake 6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake 6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake

Large Image :  6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake

Product Details:
Place of Origin: CN
Brand Name: KERID
Certification: ISO9001, CE
Model Number: KRD -G06
Payment & Shipping Terms:
Minimum Order Quantity: 2 Units
Price: Negotiated
Packaging Details: bulk or steel crate
Delivery Time: Within 15 working days after receiving your deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 150 Units Per Month
Detailed Product Description
Passengers: 5-6 Persons Controller: 48V
Battery: 8v/6pcs Max.Loading: 600kg
F/R Tread: 900/900mm Range: 80km
High Light:

road legal golf buggy

,

electric car golf cart

Quality Product Aluminium Framework Cheap 6 Seats Electric Vintage Golf Carts Off Road





Specification



Performance



Passenger capacity 6 seats
Max.Speed 25km/h
Range(loaded) 80km
Climbing Ability(loaded) ≤0.30
Braking Distance ≤4m
Min.Turning Radius 5m
Min.Clearance 150mm
Recharge time 8~10h




Dimensions



L×W×H 3700×1400×1900mm
F/R Tread 900/900mm
Axle Distance 3150mm
Curb Weight 670kg
Max. loading 600kg



Standard Configuration



Motor 48V/4KW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life.
Controller 48V/4KW Curtis controller, Special supporting electronic control and stepless speed change system, the controller has lower temperature, greater control current, more stable, more powerful motor, and play the highest efficiency of the motor
Battery Free-maintenance Batteries8V/140Ah*6 pcs,,Large capacity deep cycle power battery, good safety, long life, high service life
Roof Golf special plastic steel ceiling, waterproof, radiation protection, harmful ultraviolet ray
Body High impact fiber glass,,The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages
Windshield See-through Laminated glass,Special golf windscreen
Seats The Two rows toward the front, one row toward back,imitation leather fabric + high rebound PU, with handrails, riding comfort
Rear view mirror 2pcs , manual exterior rearview mirror, comprehensive understanding of road conditions
Painting The whole car used car grade computer professional paint, paint, spraying equipment
Tire Golf Special Alloy Wheel,Vacuum Tire
Chassis Welded tubular steel with rust-proof powder coated paint
Steering Single reduction rack and pinion ,Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light
Front Suspension The front axle and suspension are independent suspension of the Cylinder hydraulic shock
absorber,Good stability, comfortable, light direction machine, not grinding tires
Rear suspension The rear axle is an integral type rear axle, durable and reliable. Leaf spring rear suspension, cylinder hydraulic shock absorber can bear more weight
Lighting system 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
Brake system Golf special - foot brake - brake, simple operation, good safety, high stability
Charger Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ
Dashboard Equipped With the luxury electric door lock, electricity meter





Product Advantages


1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada),Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.




Color Options



6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake 0





Customization Parts



6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake 1





Packing&Shipping



6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake 2





Case Display



6 Passenger Electric Car Electrical Golf Carts With Rear Wheel Mechanical Drum Brake 3



Application





Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community, Inside factory,Shopping mall,Musuem,Campus and so on.
