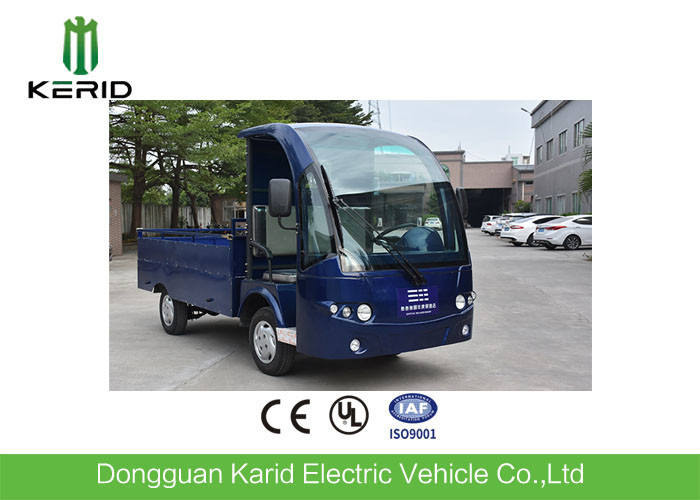

4 Wheels Electric Powered Utility Vehicles , Small Electric Transit Van
| Place of Origin | CN |
|---|---|
| Brand Name | KERID |
| Certification | ISO9001, CE |
| Model Number | KRD-V9 |
| Minimum Order Quantity | 2 UNITS |
| Price | Negotiated |
| Packaging Details | steel crate |
| Delivery Time | Within 15 working days after receiving your deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 150 Units Per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Seats | 2 Seats | Powertrain | 48V/4kW |
|---|---|---|---|
| Curb Weight | 870kg | Max Loading | 1000kg |
| Weight Platform | 2500×1500×400mm | Braking Distance | Less Than 5m |
| Max.Speed | 30Km/h | Range(loaded) | 80-100Km |
| Climbing Ability(loaded) | LessThan 30% | Recharge Time | 8~10h |
| Battery | 6V/180Ah*8 Pcs | ||
| High Light | electric cargo vehicle,electric utility vehicle |
||
Product Description
Electric Cargo Van With Wind Shield Mini 4 Wheels Electric Cargo
Van
Performance
| Passenger capacity | 2 seats |
| Max.Speed | 30km/h |
| Range(loaded) | 80-100km |
| Climbing Ability(loaded) | ≤0.30 |
| Braking Distance | ≤5m |
| Min.Turning Radius | 4m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
Dimensions
| L×W×H | 3900×1500×2000mm |
| F/R Tread | 1200/1200mm |
| Axle Distance | 2120mm |
| Curb Weight | 870kg |
| Max. loading | 1000kg |
| Weight Platform(L×W×H) | 2500×1500×400mm |
Standard Configuration
| Motor | 48V/4kW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life. |
| Controller | 48V/4kW ENPOWER controller |
| Battery | Free-maintenance Batteries 6V/180Ah*8 pcs,,Large capacity deep cycle power battery, good safety, long life, high service life |
| Body & Roof | High impact fiber glass,,The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages |
| Windshield | See-through Laminated glass,The car is equipped with special glass car wiper |
| Seats | The one row toward the front, imitation leather fabric + high rebound PU, with handrails, riding comfort |
| Rear view mirror | 2pcs ,Around one manual exterior rearview mirror, comprehensive understanding of road conditions |
| Painting | The whole car used car grade computer professional paint, paint, spraying equipment |
| Tire | Alloy Wheel,Vacuum Tire |
| Chassis | Welded tubular steel with rust-proof powder coated paint |
| Steering | Single reduction rack and pinion ,Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light |
| Front Suspension | Patented front axle suspension without grinding tires |
| Rear suspension | The rear axle is an integral type rear axle, seamless steel tube welded axle housing, cold extrusion planetary gear, low noise, durable and reliable. Leaf spring rear suspension, cylinder hydraulic shock absorber can bear more weight |
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights |
| Brake system | 4-wheel hydraulic drum brake system + handbrake,Front disc, back drum, double circuit hydraulic brake, parking brake device, safety and stability |
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ |
| Dashboard | Equipped with luxury voltmeter, ammeter, electric meter, integrated steering, brake indicator light, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button |
| Container/Packing Box | Customizable iron or stainless steel material |
Detailed Images
