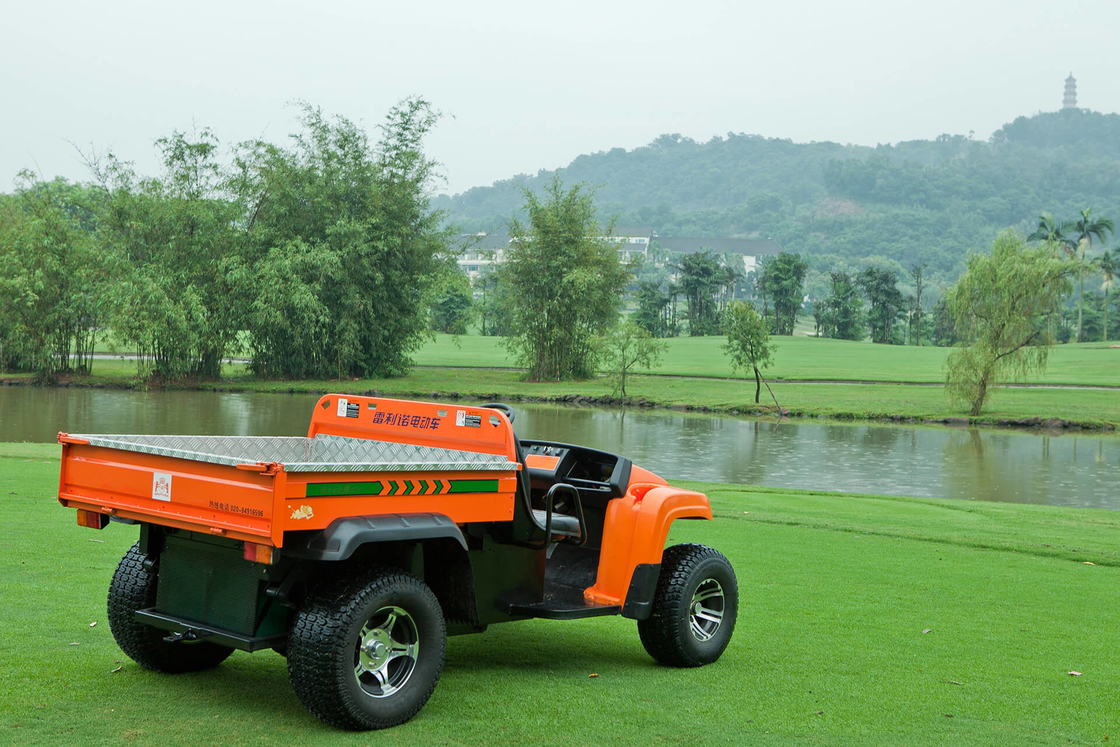

Farm Using 4x4 Utility Vehicle Dynamic Power EEC Approval

Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval
Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval

Large Image :  Farm Using 4x4 Utility Vehicle Dynamic Power EEC Approval

Product Details:
Place of Origin: CN
Brand Name: Kerid
Certification: EPA
Model Number: GE5000
Payment & Shipping Terms:
Minimum Order Quantity: 2 units
Price: Negotiated
Packaging Details: Steel Crate Packing
Supply Ability: 500 Units/Per Month
Detailed Product Description
Engine: AC MOTOR Bore And Stroke: 102 Mm /85 Mm
Max Torque: 23.5 N.m Ignition Model: TCI
Transmission: CVT Compression Ratio: 9.8:1

Products Feature :

Powertrain 48V 5KW Power

All Terrain Utility Vehicle

GENERAL SPECIFICATION:
Battery Lead MF battery:6*8V180AH Gel battery The following Picture just for your reference, our sightseeing car will be subject to your option.
Motor 48V/5KW , AC Mahle brand motor

Controller Curtis controller 48V400A
Differential Whole style steel beam rear axle , reduction ratio: 12:49
Charger Delta -Q OEM charger 20A/48V, full automatic high frequency charger
Suspension Macpheron strut suspension
Brake System Four wheels hydraulic braking system and independent parking brake
Tippeer Hydraulic Tipper
Steering power-assisted steering
Passenger capacity 2 persons
Range (loaded) (km) 80km
Max. speed (km/h) 25-30km/h
Minimum turning radius (m) 5m
Max. climbing ability (loaded) 15%
Overall dimensions(mm) 2750*1150*1185mm
Tray Dimension 1200*1280*230mm
Net weight 680kgs
Max. loading weight(kgs) 660kgs
Chassis Steel and powder coating
ground clearance 170mm
Quantity per Container 8-12PCS /40HQ

STANDARD CONFIGURATION:
DESCRPTIONS: REMARKS
Body PP plastic body
Roof Steel frame + fiber glass cover + Acryl glass roof
Windshield One-piece see-through Acryl windshield
Dashboard White fiber glass, battery capacity indicator, turning and speed indicator
Beverage holders 4 cups drink holders



Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval 0Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval 1Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval 2Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval 3Farm Using 4x4 Utility Vehicle Dynamic Power EEC  Approval 4

1. Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
2. Q: Can you do customized and preload our software?
 A:Yes, We are professional rugged device manufacture with 11 years experiences and our technical team could do customized requirements.
3. Q: Could we customize brand name (logo) ?
A:Yes, we have 10 years professional experience on OEM&ODM for mobile data terminal device.
