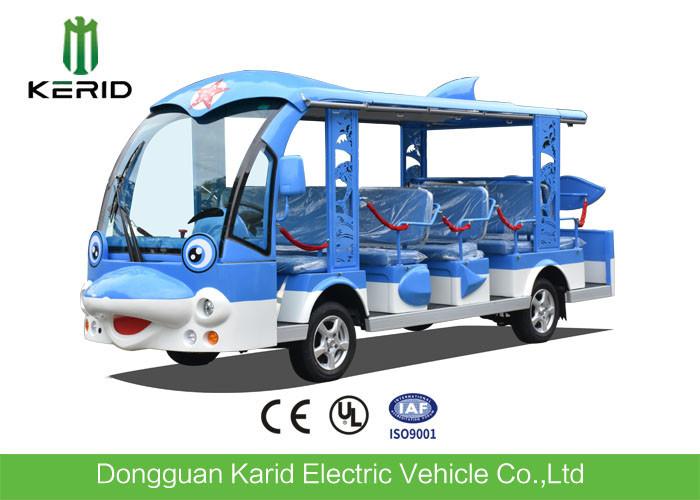

Dolphin Style Design 14 Seater Electric Mini Tourist Bus for Sightseeing
| Place of Origin | China |
|---|---|
| Brand Name | KERID |
| Certification | ISO9001, CE |
| Model Number | KRD-D14F |
| Minimum Order Quantity | 1 units |
| Price | Negociated |
| Packaging Details | Nude Packing For FCL or Steel Crate Packing For LCL |
| Delivery Time | Within 15 working days after receiving your deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 150 Units Per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | Electric | Motor | 72V/5KW DC Motor |
|---|---|---|---|
| Battery | Maintenance-Free Lead Acid Battery | Controller | 72V 400A Curtis Controller |
| Charger | 200~240V---50/60Hz Intelligent Efficiency Pulse | Charging Time | 8-10H |
| Max Speed | 28km/h | Color | White And Blue |
| Seats | 14 Bus Backrest Seater | Certificate | CE/ISO 9001 |
| Product Name | Electric Tour Shuttle Bus | Climbing Ability | 20 Degree |
| Rang | 80-100km | ||
| High Light | Dolphin Style Electric Tourist Bus,14 Seater Electric Tour Shuttle Bus,CE Approved Electric Sightseeing Car |
||
Product Description
Dolphin Style Design 14 Seater Electric Mini Tourist Bus for Sightseeing
1. 14 Seater Electric sightseeing vehicles bus/car for tourists.
2. Special Sponge + artificial leather.
3. Automatic high efficiency pulse, Output: 72V/25A, Input AC 220V/50HZ.
4. Welded tubular steel with rust-proof powder coated paint.
5. 4-wheel hydraulic drum brake system + handbrake.
6. 155/80 R12 Radial tire (Auto tire).
7. 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights.
8. Single reduction rack and pinion.
9. The MacPherson Strut suspension system, coil spring+shock absorber, Leaf spring+shock absorber non-independent suspension.
|
Main Technical Specification
|
|||
|
L*W*H
|
5000×1520×2400mm
|
Voltage
|
72V DC
|
|
F/R Tread
|
1467/1467mm
|
Battery
|
6V/225AH * 12 PCS
|
|
Axle Distance
|
2930mm
|
Controller
|
DC 72V 400A Curtis Controller
|
|
Curb Weight
|
1370kg
|
Motor
|
72V/5KW DC Motor
|
|
Max. Loading
|
1120kg
|
Body
|
High Impact FRP With Aluminum Alloy Support Column
|
|
Passenger Capacity
|
14 Persons
|
Roof
|
Light High Impact FRP
|
|
Max.Speed
|
28km/h
|
Chassis
|
Welded tubular steel with rust-proof powder coated paint
|
|
Climbing Ability(loaded)
|
0.15-0.20
|
Seats
|
5 Rows Bus Plastic Backrest Seats, 4 rows toward front, 1 row rear face.
|
|
Min.Turning Radius
|
6.5m
|
Tire
|
155/70 R12 Radial Tire, Vacuum Tire
|
|
Braking Distance
|
≤6.5m
|
Warranty
|
1 Year Free Charge Maintenance
|
|
Min.Clearance
|
130mm
|
Certificate
|
CE/ISO 9001
|
Product Feature And Application
Green energy, pure electric, zero pollution, no noise
1.It adopts the advanced electric drive technology in foreign countries, and is equipped with a professional load bearing chassis. The structure is strong, so that it has the characteristics of large load capacity and strong power.
2.This section has 8, 11, 14 seats, can load a variety of configurations, can be customized to install bus seats and other facilities, suitable for campus, villages, airports, terminal.
Detailed Images
Certifications
Optional Color
Our Company
Dongguan Karid Electric Vehicle CO.,Ltd is a high-tech company which has been specialized in r&d and manufacturing of electric vehicles. Our main product categories are electric sightseeing cars,electric golf carts,electric vintage cars,electric patrol cars,electric carry vans,trackless mini trains and various customized electric cars.
In order to provide customers with the most convenient service, the company has set up after-sales service in the provincial capital city of more than 30 provinces in china.While vigorously expanding the domestic market, but also actively carry out international exchanges and cooperation, products are exported overseas such as Australia,Eastern Europe, North America,Middle East,Vietnam,Malaysia,Pakistan etc..
