Electric Shuttle Bus
>
|
| Place of Origin | CN |
| Brand Name | KERID |
| Certification | ISO9001, CE |
| Model Number | KRD-D11 |

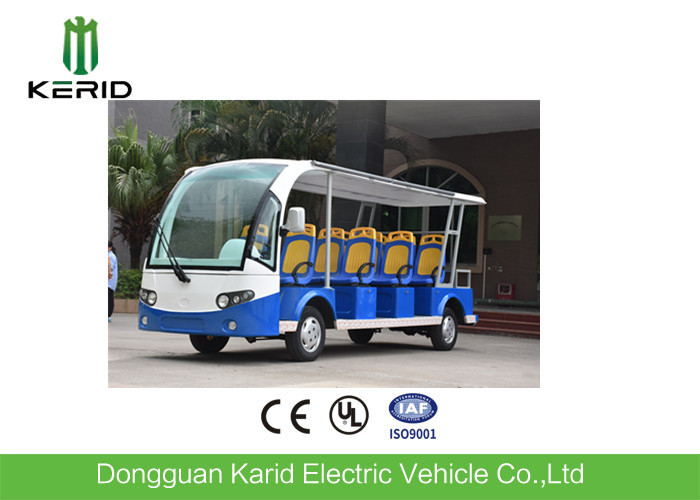

Battery Operated Electric Shuttle Bus 7.5KW 72V Motor Electric Sightseeing Tour Car
Product Features
1.Attractive design and powerful in appearance, with strong carrying capacity and lower noise;
2.Standard feature: front and rear lights, rear view mirrors, electric horn, rustproof body structure;
3.Small turning radius, smart steering system;whole style steel rear axle;
4.Can bes easy modified to transportation vehicles;
5.CE certificate for whole carts;
7.Four wheels hydraulic braking system and independent parking brake.
Specification
Performance
| Passenger capacity | 11 seats |
| Max.Speed | 30km/h |
| Range(loaded) | 80-100km |
| Climbing Ability(loaded) | 0.15-0.30 |
| Braking Distance | ≤6m |
| Min.Turning Radius | 6m |
| Min.Clearance | 190mm |
| Recharge time | 8~10h |
Dimensions
| L×W×H | 4600×1500×2000mm |
| F/R Tread | 1200/1200mm |
| Axle Distance | 2930mm |
| Curb Weight | 1170kg |
| Max. loading | 800kg |
Standard Configurations
| Motor | 72V/7.5KW AC Motor |
| Controller | 72V/7.5KW Enpower controller |
| Body & Roof | High impact fiber glass |
| Batteries | Free-maintenance Batteries 6V*12 pcs |
| Windshield | See-through Laminated glass |
| Seats | Sponge + artificial leather |
| Rear view mirror | 2pcs |
| Tire | 155/70 R12 Radial tire (Auto tire) |
| Chassis | Welded tubular steel with rust-proof powder coated paint |
| Steering | Single reduction rack and pinion |
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber |
| Rear suspension | Leaf spring+shock absorber non-independent suspension |
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights |
| Sound system | Radio and MP3 player; Speaker |
| Brake system | 4-wheel hydraulic drum brake system + handbrake |
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ |
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button |
