Payment & Shipping Terms:
|Power Train:||DC Motor||Motor Model:||XQY-13.5-D|
|Certification:||CE/ISO 9001||Controller:||(Italy) AC-L1 96/100V450A SWS|
|Max Torque:||250N.M||Chassis:||Sheet Metal Structure|
|Passenger Capacity:||42 Seats||Port:||Shanghai/Shenzhen|

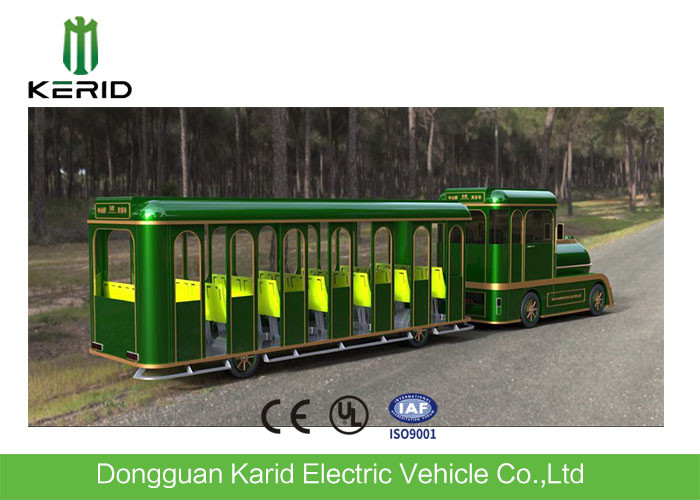

electric tourist train,
mini express trackless train
Customer service post: Karid has always been adhering to the "quality first, customer first" principle of service, for customers to provide the most convenient service, the company in the northeast and North China, central China, East China, northwest, southwest, Southern China district and other national more than 30 provincial capital city to set up customer service service.
After sales response: insist on quarterly regular return visit and guidance maintenance, to extend the service life of the vehicle, after receiving the customer after-sales call, the company will arrange the nearest after-sales service staff from your unit to deal with after-sale problems
Quality assurance: the sale of products for the factory packaging intact, in accordance with the National Quality Certification Center certification standards, provide technical data, instructions and certificate.
Customer service warranty: one year free warranty, except the spare parts, to provide door-to-door service, the user need not repair, and provide technical services for life support and maintenance.
Service time: 7*24 hours, all-weather after-sales service.
|Color||Customized||Application||Resort /Amuse park /Children park|
|Power||DC Motor||Certification||CE, RoHS|
|Motor model||XQY-13.5-D||Warranty||1 year|
|Motor rated power||13.5KW||Controller||(Italy) AC-L1 96/100V450A SWS|
|Maximum torque||250N.M||MOQ||1 Unit|
|Minimum turning radius||7.5M||Price||USD 60000-63000|
1. General parameters
Rated passenger (person) 1+1
Curb mass (kg) 1800
Front axle allows maximum load (kg) 1250
Rear axle allows maximum load (kg) 2400
Vehicle length (mm) 4100
Vehicle width (mm) 1860
Vehicle height (mm) 2420
• Wheelbase (mm) 2600
The front track (mm) 1400
The rear wheel (mm) 1400
Minimum ground clearance (full load) (mm) 180
Approach angle (full load) 25 degrees
From (full) 7 degree chamfer
2. Motor, Electronic Control and Clutch
Motor model XQY-13.5-D
Motor rated voltage 96V (DC)
Motor rated power 13.5KW
Motor maximum power 50KW
Motor rated speed 1440r/min
Motor maximum torque 250N.m
Max. motor speed 3000r/min
Electrical control model (Italy) AC-L1 96/100V450A SWS
Clutch disc type
3 . Main chassis assembly
Gearbox LG525 manual 5+1
Drive shaft rear drive
Rear axle welding integral type (full floating type)
Front axle circular tube (welded monolithic)
Suspension leaf spring
Steering mechanism mechanical electric steering booster
1) Foot brake mechanical double tube hydraulic brake with straight pedal (with vacuum booster)
2) Hand brake - flexible shaft control
6.00-14 wheels and tires
The single line system, negative ground
Line voltage 12V
4, The main structure of the car head
The appearance of antique type locomotive, the front engine cover turning type, in the front of a motor, electric control, battery and transmission assembly, are arranged on both sides of the steps
Driver's internal facilities
Instrument console, FRP instrument stand assembly, configuration megaphone and CD sound horn
The driver's seat is high and the seat is adjustable on the upper and lower seats
One fan is installed on the top of the driver
Compartment (each section parameter, two sections)
1. Main technical performance parameters
Rated passenger (person) (section Two) 20+20=40
Overall size (length * width * height) (no-load, single section) 4434 x 1800 x 2300
Curb mass (kg) 1200
Front / back (kg) 600/600
Maximum carrying mass (kg) 2500
Front / back (kg) 1250/1250
Minimum turning radius (m) 7.5
High (mm) 1820 in passenger area
The passenger door frame width (mm) 350
Wheelbase (mm) 2600
Hang length (mm) 960
Track (mm) 1260
Minimum ground clearance (full load, front / rear) (mm) 200
The floor ground clearance (mm = 360)
Vertical pass angle (DEG) 25
2. Main assembly structure
1) Front and rear axles: welded integral round tubes
2) Both before and after the suspension: independent suspension, are equipped with multiple leaf spring and double acting telescopic shock absorber and stabilizer bar
3) Running brake: synchronous braking with the front car
4) Wheels and Tires: 165/70R13
5) Frame: straight beam trapezoid frame
6) Electrical multiple polarity negative electrode, voltage is 12V
The top and the side are provided with the outline lamp, and the last section is equipped with various signal lights
3.Main structure of car body
Cover: antique style, beautiful shape, surrounded by rain eaves
Side: antique shape, the right side of the door with five upper and lower outlet, left closed with moving window, the right side of the upper and lower passenger pedal
Front and rear circumference: steel skeleton structure of rectangular tube
Outer Mongolia: weathering steel plate, carbon dioxide welding, anti-corrosion pretreatment
Car seat: high resilience imitation leather cushion and backrest, back of the backrest with stainless steel handle
Carriage floor: anti-skip aluminium plate
Paint: automotive high temperature paint (DuPont polyurethane topcoat and medium, bottom coating)
Train connection part
1. It adopts inertia brake, emergency brake and emergency protection chain, which is safe, convenient and reliable
2. Two springs can be used on both sides to prevent pedestrians from passing
