| West Road Xingye ,Panyu District,Guangzhou China | victor@homach.cn |
|
Product Details:
Payment & Shipping Terms:
|
| Max Speed: | 45km/hr | Wheelbase: | 2185mm |
|---|---|---|---|
| Max Range: | ≤150km | Color: | White |
| Power Train: | Motor | Rate Voltage: | 72V |
| Max Gradeability: | ≤25% | Rated Passenger: | 4 Passengers |
| High Light: | mini electric car,fully electric vehicles |
||

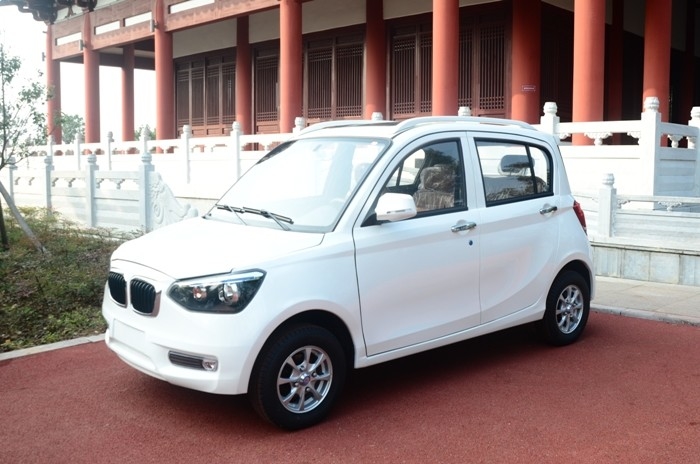

Long Range Light Weight Electric City Car LSV / NEV Model X1-400 CE Approval
Product Description
Main Parameters
| Model | X1-400 | |
| drive model | F/R | |
| rated passenger | 4 passengers | |
| overall profile | length(mm) | 3300 |
| width(mm) | 1550 | |
| height(mm) | 1560 | |
| wheelbase(mm) | 2185 | |
| tread(mm) | 1360/1350 | |
| motor rated power(kw) | 3.5 | |
| charging time(h) | 8-10h | |
| voltage | 72V | |
| input voltage(V) | 220 | |
| tire | 155/70 R12 | |
| F/R tire pressure | 2.5Kpa | |
| payload(kgs) | 450 | |
| curb mass(kgs) | 850 | |
| main performance | max speed(km/h) | 45 |
| max gradeability(%) | ≤25 | |
| brake distance(m) | ≤5 | |
| min swerve radius(m) | ≤5 | |
| continue range(km) | ≤150 | |
Standard Configuration
| main config | battery qty | 6 |
| rated voltage(V) | 72 | |
| rated capacity(Ah) | 100 | |
| charging time(h) | 10 | |
| range extender | N/A | |
| front door glass lifter | ||
| rear door glass lifter | N/A | |
| power assisted steering | ||
| remote key | ||
| rear view camera | ||
| parking sensor | N/A | |
| heater | ||
| air conditioner | ||
| sun roof |
Suspention: Macpherrson front suspension,Independent suspension of integral axle rear suspension
Brake System: F/R brake style,front disc rear drum with brake booster
Power Train: 1. Motor: permanent magnet synchronous motor
2. Battery Model: lead acid maintenance free
Product Features
1. High - end brand motor, power output stable and sufficient, low noise, easy to control.
2. It has the function of brake support and anti-slip slope, which makes you more convenient to drive.
3.Rich in technology.
1> The remote control key is unlocked, the key to lock the car is fixed.
2> The Windows are controlled by the power button.
3> The DVD multimedia system is equipped with reverse image, radio and audio and video entertainment functions.
4> Optional navigation, air conditioning and steering.
Detailed Images
Service commitment
Customer service post: Karid has always been adhering to the "quality first, customer first" principle of service, for customers to provide the most convenient service, the company in the northeast and North China, central China, East China, northwest, southwest, Southern China district and other national more than 30 provincial capital city to set up customer service service.
After sales response: insist on quarterly regular return visit and guidance maintenance, to extend the service life of the vehicle, after receiving the customer after-sales call, the company will arrange the nearest after-sales service staff from your unit to deal with after-sale problems
Quality assurance: the sale of products for the factory packaging intact, in accordance with the National Quality Certification Center certification standards, provide technical data, instructions and certificate.
Customer service warranty: one year free warranty, except the spare parts, to provide door-to-door service, the user need not repair, and provide technical services for life support and maintenance.
Service time: 7*24 hours, all-weather after-sales service.
