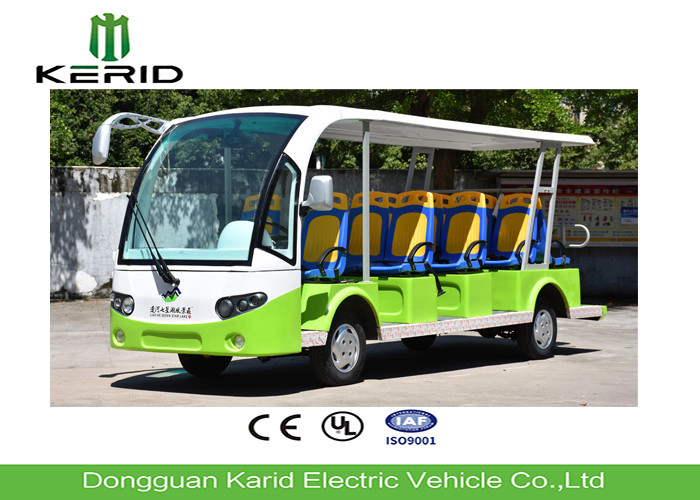

Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats

Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats
Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats

Large Image :  Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats

Product Details:
Place of Origin: CN
Brand Name: KERID
Certification: ISO9001, CE
Model Number: KRD-D14
Payment & Shipping Terms:
Minimum Order Quantity: 2 units
Price: Negotiated
Packaging Details: Nude packing / Steel crate
Delivery Time: Within 15 working days after receiving your deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 150 Units Per Month
Detailed Product Description
Model: KRD-D14 Passengers: 14 People
Motor: 7.5KW AC Controller: 72V Enpower-400A
Battery: 6V*12PCS Braking Distance: Less Than 6m
Color: Customized
High Light:

electric sightseeing vehicle

,

electric tour bus





Long Service Life Fiber Glass Body 14 Passengers Electric



Sightseeing Tour Bus







Feature Description



It adopts the advanced electric drive technology in foreign countries, and is equipped with a professional load bearing chassis. the structure is strong, so that it has the characteristics of large load capacity and strong power.





Performance



Passenger capacity 14seats
Max.Speed 30km/h
Range(loaded) 80-100km
Climbing Ability(loaded) 0.15-0.30
Braking Distance ≤5m
Min.Turning Radius 6m
Min.Clearance 190mm
Recharge time 8~10h







Dimensions



L×W×H 5100×1500×2000mm
F/R Tread 1200/1200mm
Axle Distance 2930mm
Curb Weight 1190kg
Max. loading 1120kg







Standard Configuration



Motor 7.5kW AC motor, powerful, superior traction performance, low noise, overload capacity, long service life.
Controller 72V Enpower-400A
Body & Roof High impact fiber glass, The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages
Batteries Free-maintenance Batteries, 6V*12 pcs Large capacity deep cycle power battery, good safety, long life, high service life
Windshield See-through Laminated glass, The car is equipped with special glass car wiper
Seats Sponge + artificial leather, high rebound PU, with handrails, riding comfort
Rear view mirror 2pcs , manual exterior rearview mirror, comprehensive understanding of road conditions
Tire 155/70 R12 Radial tire (Auto tire),Alloy Wheel,Vacuum Tire
Chassis Welded tubular steel with rust-proof powder coated paint
Steering Single reduction rack and pinion, Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light
Front Suspension The MacPherson Strut suspension system, coil spring+shock absorber
Rear suspension Leaf spring+shock absorber non-independent suspension
Lighting system 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
Sound system Radio and MP3 player; Speaker
Brake system 4-wheel hydraulic drum brake system + handbrake
Charger Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ
Dashboard Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button













Colors



Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats 0









Detailed Images



Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats 1



Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats 2





Packaging & Delivery

Aluminum Alloy Column Electric Shuttle Bus With 14 comfortable bus seats 3
