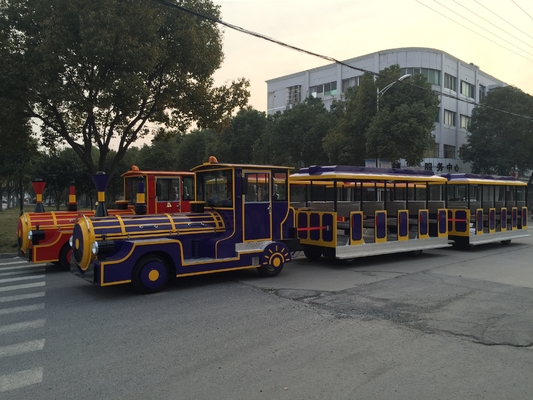

Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor

Certification
China Guangzhou Jetflix Machinery & Equipment Co,Ltd certification
China Guangzhou Jetflix Machinery & Equipment Co,Ltd certification
I'm Online Chat Now

Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor

Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor
Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor

Large Image :  Zero Emission Amusement Park Electric Trains 42 Passengers 13.5KW Rated Power Motor

Product Details:
Place of Origin: CN
Brand Name: Kerid
Certification: CE
Model Number: Union 96
Payment & Shipping Terms:
Minimum Order Quantity: 2 Units
Price: Negotiated
Packaging Details: Nude Packing
Delivery Time: within 30 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Units per month
Detailed Product Description
Body Material: Weathering Steel Plate Power: DC Motor
Motor Model: XQY-13.5-D Color: Customized
Certification: CE/ISO 9001 Controller: (Italy) AC-L1 96/100V450A SWS
Max Torque: 250N.M Port: Shanghai/Shenzhen
Clutch: Disc Type
High Light:

electric tourist train

,

amusement park electric trains


Zero Emission 13.5KW Rated Power Motor 42 Passengers Mini Electric Trackless Train With 96V Rated Valtage


Product Description





Model
Thomas-96
Voltage
DC/96V
Color
Customized
Application
Resort /Amuse park /Children park
Power
DC Motor
Certification
CE, RoHS
Motor model
XQY-13.5-D
Warranty
1 year
Motor rated power
13.5KW
Controller
(Italy) AC-L1 96/100V450A SWS
Maximum torque
250N.M
MOQ
1 Unit
Minimum turning radius
7.5M
Price
USD 60000-62000/Unit
Clutch
Disc type
Port
Shanghai/Shenzhen





Specifications



                                                             The locomotive

1. General parameters

Rated passenger (person) 1+1

Curb mass (kg) 1800

Front axle allows maximum load (kg) 1250

Rear axle allows maximum load (kg) 2400

Vehicle length (mm) 4100

Vehicle width (mm) 1860

Vehicle height (mm) 2420

• Wheelbase (mm) 2600

The front track (mm) 1400

The rear wheel (mm) 1400

Minimum ground clearance (full load) (mm) 180

Approach angle (full load) 25 degrees

From (full) 7 degree chamfer

2. Motor, Electronic Control and Clutch

Motor model XQY-13.5-D

Motor rated voltage 96V (DC)

Motor rated power 13.5KW

Motor maximum power 50KW

Motor rated speed 1440r/min

Motor maximum torque 250N.m

Max. motor speed 3000r/min

Electrical control model (Italy) AC-L1 96/100V450A SWS

Clutch disc type

3 . Main chassis assembly

Gearbox LG525 manual 5+1

Drive shaft rear drive

Rear axle welding integral type (full floating type)

Front axle circular tube (welded monolithic)

Suspension leaf spring

Steering mechanism mechanical electric steering booster

Brake
1) Foot brake mechanical double tube hydraulic brake with straight pedal (with vacuum booster)
2) Hand brake - flexible shaft control


6.00-14 wheels and tires

The single line system, negative ground

Line voltage 12V

4, The main structure of the car head

The appearance of antique type locomotive, the front engine cover turning type, in the front of a motor, electric control, battery and transmission assembly, are arranged on both sides of the steps

Driver's internal facilities

Instrument console, FRP instrument stand assembly, configuration megaphone and CD sound horn

The driver's seat is high and the seat is adjustable on the upper and lower seats

One fan is installed on the top of the driver





                                 Compartment (each section parameter, two sections)

1. Main technical performance parameters

Rated passenger (person) (section Two) 20+20=40

Overall size (length * width * height) (no-load, single section) 4434 x 1800 x 2300

Curb mass (kg) 1200

Front / back (kg) 600/600

Maximum carrying mass (kg) 2500

Front / back (kg) 1250/1250

Minimum turning radius (m) 7.5

High (mm) 1820 in passenger area

The passenger door frame width (mm) 350

Wheelbase (mm) 2600

Hang length (mm) 960


Track (mm) 1260

Minimum ground clearance (full load, front / rear) (mm) 200

The floor ground clearance (mm = 360)

Vertical pass angle (DEG) 25

2. Main assembly structure

1) Front and rear axles: welded integral round tubes

2) Both before and after the suspension: independent suspension, are equipped with multiple leaf spring and double acting telescopic shock absorber and stabilizer bar

3) Running brake: synchronous braking with the front car

4) Wheels and Tires: 165/70R13

5) Frame: straight beam trapezoid frame

6) Electrical multiple polarity negative electrode, voltage is 12V

The top and the side are provided with the outline lamp, and the last section is equipped with various signal lights

3.Main structure of car body

Cover: antique style, beautiful shape, surrounded by rain eaves

Side: antique shape, the right side of the door with five upper and lower outlet, left closed with moving window, the right side of the upper and lower passenger pedal

Front and rear circumference: steel skeleton structure of rectangular tube

Outer Mongolia: weathering steel plate, carbon dioxide welding, anti-corrosion pretreatment

Car seat: high resilience imitation leather cushion and backrest, back of the backrest with stainless steel handle

Carriage floor: anti-skip aluminium plate

Paint: automotive high temperature paint (DuPont polyurethane topcoat and medium, bottom coating)





                                                          Train connection part

1. It adopts inertia brake, emergency brake and emergency protection chain, which is safe, convenient and reliable

2. Two springs can be used on both sides to prevent pedestrians from passing
